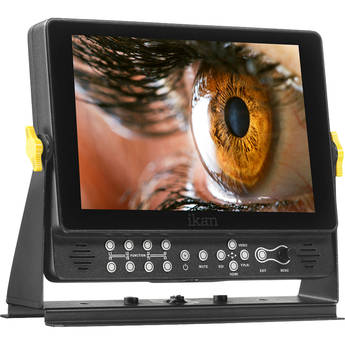

Ikan VX9W-S 9" 3G-SDI/HDMI Field Monitor with Scopes and L-Series Battery Plate

Model #VX9W-S

Ikan vx9w s 1
Ikan vx9w s 1
Ikan vx9w s 2
Ikan vx9w s 3
Ikan vx9w s 4
Ikan vx9w s 5
How it works
  • You name the price you want to pay for a product.
  • We send your offer to a network of Certified Retailers.
  • If the retailer likes your offer, you get that price for the product.
Greentoe Guarantee
  • All Products are New and from Manufacturer Authorized Retailers
  • 30 day return policy
  • Free Shipping
    No Additional Fees

Product Back-Ordered

We are sorry. At this time, we are not accepting offers on this product. Please click the button below to be notified when our retailers get it back in stock.

Thank you! We will be in touch. Something went wrong. Please try again later.
Specifications

Packaging Info

Package Weight 5.55 lb
Box Dimensions (LxWxH) 15.5 x 14.6 x 4.1"

General Information

Resolution 1920 x 1200
Pixel Pitch 0.00393" / 0.09975 mm
Response Time 16 ms
Brightness 450 cd/m²
Contrast 900:1
Viewing Angles 170° L/R 170° U/D
Screen 8.9" IPS LCD screen
Input and Output Connectors Inputs SD/HD/3G-SDI: 1 x BNC HDMI: 1 x HDMI type A Component: 3 x BNC (YPbPr) Composite: 1 x BNC Outputs SD/HD/3G-SDI: 1 x BNC HDMI: 1 x HDMI type A Component: 3 x BNC (YPbPr) Composite: 1 x BNC
Mount Type 1/4"-20 threaded mounting holes on top, bottom, and each side
Power Requirements 7 to 24 VDC
Power Consumption 8.5 W
Dimensions (WxHxD) 9.1 x 7.0 x 1.6" / 23.1 x 17.8 x 4.1 cm
Weight 3.5 lb / 1.6 kg
Supported Formats 3G-SDI 2048 x 1080PsF: 30/29.97/25/24/23.98 1920 x 1080p: 60/59.94/50 (4:2:2 YCBCR) HD-SDI 1920 x 1080p: 30/29.97/25/24/23.98 (4:4:4 YCBCR) 1920 x 1080PsF: 30/29.97/25/24/23.98 (4:4:4 YCBCR) 1920 x 1080i: 60/59.94/50 (4:4:4 YCBCR) 1280 x 720p: 60/59.94/50/30/29.97/25/24/23.98 (4:4:4 YCBCR) SD-SDI 720 x 480i: 60 (4:2:2) 720 x 576i: 50 (4:2:2) HDMI 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080PsF: 30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50/30/29.97/25/24/23.98 720 x 480i: 60 720 x 576i: 50 Component 1920 x 1080p: 30/29.97/25/24/23.98 1920 x 1080PsF: 30/29.97/25/24 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50/30/29.97/25/24/23.98 720 x 480i: 60 720 x 576i: 50 Composite NTSC-M NTSC-J NTSC 4.43 PAL B/G H I D PAL M PAL N SECAM
Video System NTSC/PAL/SECAM (auto detect)
Product Highlights
  • 9" 1920x 1080 3G-SDI & HDMI Monitor
  • Waveform, RGB Parade, Vectorscope
  • Histogram, Audio Meters
  • 450 cd/m² Brightness, 900:1 Contrast
  • 170° Viewing Angle
  • 3G-SDI, HDMI, & Analog Video Inputs
  • False Color, Monochrome Peaking, Tally
  • Aluminum Chassis, Gorilla Glass Screen
  • Interchangeable L-Series Battery Plate
In The Box
  • ikan VX9W-S 9" 3G-SDI/HDMI Field Monitor with Scopes and L-Series Battery Plate
  • BP2-S Sony L DV Battery Plate for ikan Monitors
  • AC Adapter
  • Screen Cleaning Cloth
  • Screen Protector
  • Table Stand
  • USB Thumb Drive
  • Limited 1-Year Warranty
