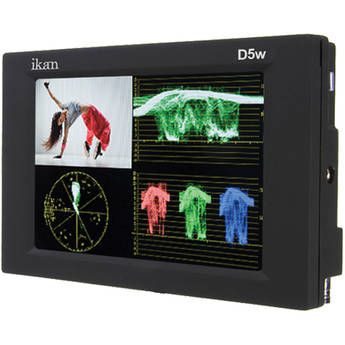

ikan D5W-1 5.6" On-Camera Monitor with Waveform, Scopes, and Canon 900, Sony L, Panasonic D54 Type Battery Plates

Model #D5W-1

Ikan d5w 1 1
Ikan d5w 1 1
Ikan d5w 1 2
Ikan d5w 1 3
Ikan d5w 1 4
Ikan d5w 1 5
How it works
  • You name the price you want to pay for a product.
  • We send your offer to a network of Certified Retailers.
  • If the retailer likes your offer, you get that price for the product.
Greentoe Guarantee
  • All Products are New and from Manufacturer Authorized Retailers
  • 30 day return policy
  • Free Shipping
    No Additional Fees

Product Unavailable

We are sorry. At this time, we are not accepting offers on this product.

Specifications

Packaging Info

Package Weight 2.2 lb
Box Dimensions (LxWxH) 12.4 x 7.8 x 2.8"

General Information

Brightness 300 nit
Contrast Ratio 500:1
Inputs 1x 3G/HD/SD-SDI 1x HDMI
Outputs 1x SD/HD/3G-SDI 1x 3.5 mm headphone jack
Aspect Ratio 16:10
Viewing Angle 160 x 160°
Supported Resolutions 3G-SDI: 1920 x 1080p @ 50, 59.94, 60 Hz HD-SDI: 1920 x 1080p @ 23.97, 24, 25, 29.94, 30 Hz 1920 x 1080i @ 50, 59.94, 60 Hz 1920 x 1080psf @ 23.98, 24, 25, 29.97, 30 Hz 1280 x 720p @ 50, 59.94, 60 Hz SD-SDI: 720 x 576i @ 50 Hz 720 x 480i @ 60 Hz HDMI: 1920 x 1080p @ 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Hz 1920 x 1080i @ 50, 59.94, 60 Hz 1920 x 1080psf @ 24, 25, 29.97, 30 Hz 1280 x 720p @ 50, 59.94, 60 Hz 720 x 576i/@ 50 Hz 720 x 480i/p @ 59.94, 60 Hz
Response Time 30 ms
Display LCD IPS, 5.6" screen (diagonally)
Mounting 4 x 1/4"-20 threads (one on each side)
Input Voltage 6 to 24 VDC
Power Consumption 9.2 W
Color System PAL, NTSC, SECAM (Auto-Detected)
Operating Temperature 32 to 140°F (0 to 60°C)
Dimensions 4.1 x 6.5 x 0.9" (10.4 x 16.5 x 2.3 cm)
Weight 0.6 lb (0.27 kg)
Pixel Pitch 0.094 x 0.094 mm
Resolution 1280 x 800
Product Highlights
  • 5.6" 1280 x 800 3G-SDI, HDMI Inputs
  • 300 Nit Brightness/400:1 Contrast Ratio
  • 160° Viewing Angle
  • Waveform / RGB Parade / Vectorscope
  • Monochrome and Color Peaking
  • False Color with Luminance Warning
  • Movable Pixel-to-Pixel, Clip Guides
  • 3 Assignable Function Buttons
  • Includes Battery Plates, Sun Visor
