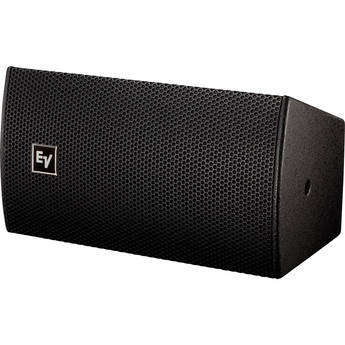

Electro-voice EVU1062/95 Single 6.5" Two-Way 90 x 50 Full-Range Loudspeaker System (Black)
Model: F.01U.216.249
Electro-Voice Warranty
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Specifications
General Information
Frequency Response | -3 dB: 110 Hz to 16 kHz (half-space measurement) |
Frequency Range | -10 dB: 65 Hz to 20 kHz (half-space measurement) |
Coverage | Rotatable Coverage: 90 x 50° |
Frequency | Rec. High-Pass Frequency: 90 Hz |
Passive Crossover Frequency | 2600 Hz |
Axial Sensitivity | 92 dB (1 W/1 m) (half-space measurement) |
SPL | Maximum: 120 dB |
Power Handling | Passive Continuous: 160 W Peak: 640 W |
Transducer | LF Transducers: ICT-6.5-8, 6.5" (165 mm) driver HF Transducer: ICT-1-8, 1.3" (33 mm) diaphragm compression driver |
Impedance | Nominal: 8 Ohms Minimum: 6 Ohms |
Connectors | Single four-pin 12 AWG Phoenix/Euro Block screw-terminals |
Enclosure | 9-ply hardwood plywood with textured paint |
Grille | 18 GA steel with cloth |
Environmental | IEC 60529 |
Suspension | 6 x M8 threaded suspension points |
Dimensions (H x W x D) | 8.21 x 14.6 x 8.14" (208 x 370 x 207 mm) |
Weight | 14 lb (6.5 kg) |
- Electro-Voice EVU1062/95 Single 6.5" Two-Way 90 x 50 Full-Range Loudspeaker System (Black)
- Limited 5-Year Warranty
- U-Bracket Included
