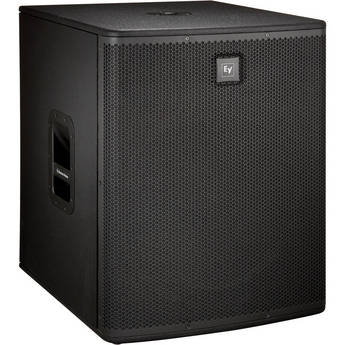

Electro-Voice ELX118 18" Live X Passive Subwoofer
Model: F.01U.170.825
Electro-Voice Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Specifications
Packaging Info
Package Weight | 80.0 lb |
Box Dimensions (LxWxH) | 26.02 x 22.6 x 19.96" |
General Information
Power Capacity | 400W Continuous, 1600W Peak |
Maximum Sound Pressure Level (SPL) | 134dB |
Nominal Sensitivity | 96dB |
Impedance | Nominal: 8 Ohms Minimum: 6.7 Ohms |
Coverage | Omnidirectional |
Active or Passive | Passive |
Enclosure Material | 9-Ply 15mm Plywood, Internally Braced with Textured Paint, 18-Guage Powder-Coated Steel Grille, and Integrated Handles |
Input Connections | 2 x NL4 Speakon Connectors |
Mounting | 35mm Pole Socket |
Dimensions (HxWxD) | 26.02 x 19.96 x 22.6" (661 x 507 x 574mm) |
Weight | 70.11 lbs (31.8kg) |
Low Frequency Driver | 18" (457mm) Woofer |
Frequency Response | 50-100Hz ±3dB 35-200Hz ±10dB |
- 18" Woofer
- 1600W Peak Power Handling
- Dual NL4 Speakon Connectors
- Plywood Cabinet
- Steel Grille
- 35mm Pole Socket
- Integrated Handles
- Electro-Voice ELX118 18" Live X Passive Subwoofer
- 5-Year Limited Warranty
