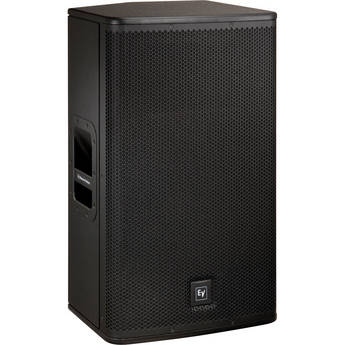

Electro-Voice ELX115 15" Live X 2-Way Passive Loudspeaker
Model: F.01U.170.824
Electro-Voice Warranty
- You name the price you want to pay for a product.
- If the retailer likes your offer, you get that price for the product.
- Guaranteed Brand New Products
- All Products Sold by Manufacturer Authorized Retailers
- 30 Day Return Policy
-
Free Shipping
No Additional Fees
Specifications
Packaging Info
Package Weight | 59.0 lb |
Box Dimensions (LxWxH) | 27.87 x 17.01 x 15.04" |
General Information
Power Capacity | 400W Continuous, 1600W Peak |
Maximum Sound Pressure Level (SPL) | 134dB |
Nominal Sensitivity | 95dB |
Impedance | Nominal: 8 Ohms Minimum: 7.4 Ohms |
Crossover | 1.7kHz |
Coverage | 90 x 50° (HxV) |
Active or Passive | Passive |
High Frequency Driver | 1.5" (39mm) Titanium Diaphragm Compression Driver |
Enclosure Material | 9-Ply 15mm Plywood, Internally Braced with Textured Paint, 18-Guage Powder-Coated Steel Grille, and Integrated Handles |
Input Connections | 2 x NL4 Speakon Connectors |
Mounting | 35mm Pole Socket |
Dimensions (HxWxD) | 27.87 x 17.01 x 15.04" (708 x 432 x 382mm) |
Weight | 50.71 lbs (23kg) |
Low Frequency Driver | 15" (381mm) Woofer |
Frequency Response | 75Hz - 18kHz ±3dB 50Hz - 20kHz ±10dB |
- 15" Woofer
- 1.5" Titanium Compression Driver
- 1600W Peak Power Handling
- Dual NL4 Speakon Connectors
- Plywood Cabinet
- Steel Grille
- 35mm Pole Socket
- Integrated Handles
- Electro-Voice ELX115 15" Live X 2-Way Passive Loudspeaker
- 5-Year Limited Warranty
